Braided Wire Harness

Trusted Partner for Braided Wire Harness Solutions

With decades of experience in custom wiring solutions, Stantek supports defense contractors, aerospace OEMs, automotive manufacturers, and industrial equipment builders with low-to-moderate volume production of custom braided wire harness assemblies.Our team collaborates closely with customers to provide initial design support, material selection guidance, and testing solutions  that meet stringent military, aerospace, and industrial standards.In high-performance applications where cables are subject to continuous movement, vibration, and abrasive contact, mechanical protection is essential. Stantek stands out for its ability to adapt quickly to evolving customer schedules, design changes, and specification requirements - without compromising quality or lead time.

Our Braided Wire Harness Manufacturing Capabilities

Our braided wire harness assemblies are designed with durable synthetic braiding that protects cables from abrasion, cutting, and mechanical wear while maintaining flexibility for routing through tight spaces and moving assemblies. We offer:

• Custom braided wire solutions engineered for high-abrasion environments
• Military and aerospace wire harnesses with MIL-SPEC compliant protective braiding
• Automotive braided harnesses for engine compartments, chassis routing, and moving assemblies
• Multi-axis braiding technology for uniform coverage and consistent mechanical protection
• Synthetic braids (nylon, polyester, aramid fibers) for maximum abrasion resistance and flexibility
• High-temperature braiding materials for thermal protection in extreme environments
• Expandable braiding for easy installation and cable access during maintenance
• Environmental sealing and overmolding for moisture, vibration, and thermal protection
• Prototyping and low-to-moderate volume production
• Comprehensive testing including abrasion resistance, flexibility, and mechanical integrity verification

Industries We Serve

Braided wire harness assemblies are used in applications where cables require additional mechanical protection against abrasion, vibration, flexing, and harsh operating conditions. Stantek manufactures custom braided wire harness assemblies for OEMs across industries where reliable cable protection, organized routing, and long service life are critical.

• Defense & Military – Tactical vehicles, military ground systems, field communication equipment, unmanned systems, and mission-critical platforms requiring durable cable protection in harsh environments.
• Aerospace – Aircraft systems, avionics support equipment, rotorcraft applications, engine compartments, and aerospace ground support equipment exposed to vibration, movement, and demanding operating conditions.
• Automotive & Electric Vehicles – Engine compartments, chassis systems, battery-related applications, moving vehicle assemblies, and performance vehicles requiring abrasion-resistant cable protection.
• Industrial Automation & Robotics – Robotic systems, automated machinery, CNC equipment, cable carriers, and moving assemblies where continuous flexing and mechanical wear protection are essential.
• Heavy Equipment & Mobile Machinery – Construction equipment, agricultural machinery, mining equipment, and material handling systems operating in high-vibration and abrasive environments.
• Marine & Transportation – Vessel electrical systems, transportation equipment, and onboard control systems requiring durable harness protection against movement, vibration, and environmental exposure.

By manufacturing braided wire harness assemblies tailored to each application, Stantek helps OEMs improve cable protection, reduce mechanical wear, and achieve reliable electrical performance in demanding operating environments.

Why Choose Stantek for Braided Wire Harness Manufacturing?

1. Manufacturing Expertise: With years of experience in braided wire harness design and manufacturing, we bring deep technical knowledge to every design consultation -ensuring proper braid material selection, coverage optimization, and routing strategy for maximum abrasion protection. Our team understands the critical balance between mechanical protection, flexibility, and durability that high-performance applications demand in harsh operating environments.
2. Flexibility & Responsiveness: Our agile production model allows us to adapt quickly to changing schedules, design modifications, and urgent delivery needs a critical advantage for defense contractors and aerospace OEMs managing dynamic project timelines and prototype iterations. As a flexible braided wire harness supplier, we support mid-production braid changes, updated routing specifications, revised protection requirements, and accelerated delivery schedules without compromising quality or mechanical performance.
3. Quality You Can Rely On: Our manufacturing processes operate under rigorous Quality Management Systems. ISO 9001:2015, Global Electronic Association/WHMA-A-620, J-STD-001, and MIL-spec standards ensure every assembly meets strict performance, insulation, and durability requirements.
4. Proven Customer Support: Exceptional customer service is at the heart of what we do. From concept to completion, we are committed to providing clear communication, responsive project management, and dependable on-time delivery. Our team understands the technical demands of mechanically harsh environments and provides informed guidance throughout every phase of development and production.

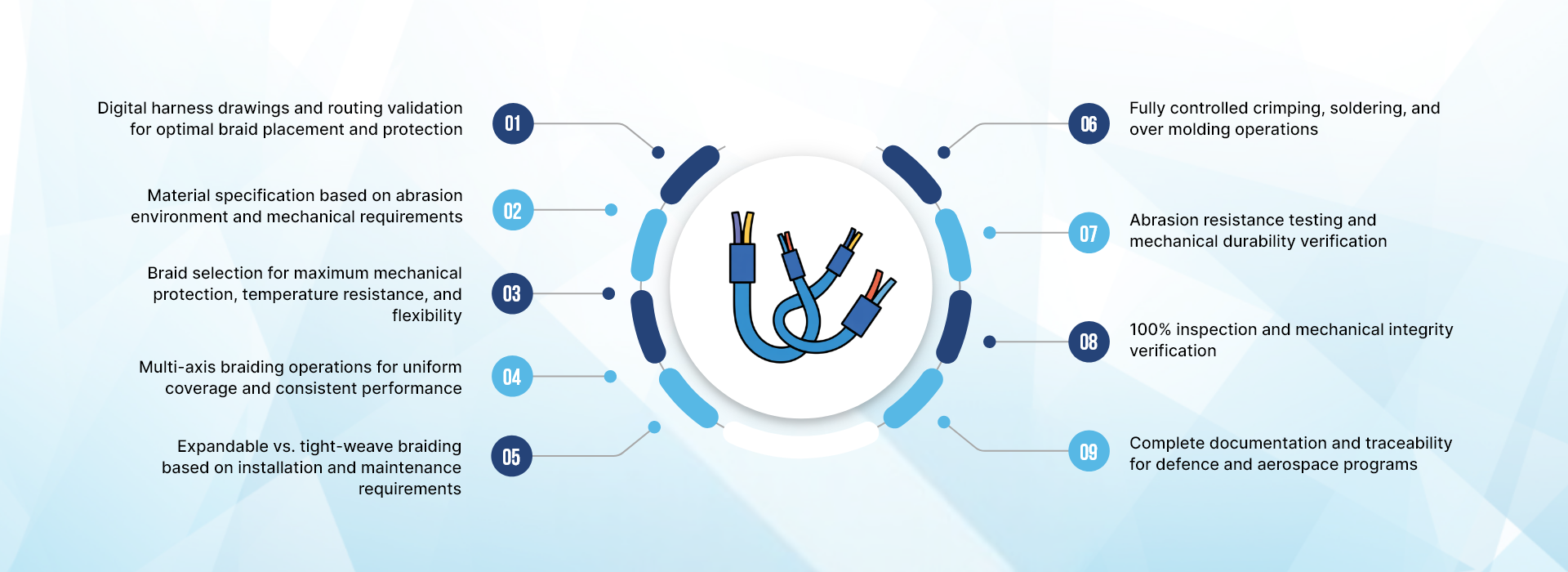

How Stantek Manufactures Braided Wire Harnesses

   Every braided wire harness assembly follows a controlled manufacturing process designed to provide reliable mechanical protection, consistent braid coverage, and long-term durability. Each assembly is manufactured according to customer drawings, specifications, and production documentation to ensure dependable performance in demanding defense, aerospace, automotive, and industrial applications.

• Step 1 – Digital Harness Drawings & Routing Validation: Each project begins with a detailed review of customer drawings, cable routing layouts, and application requirements. Harness routing, branch locations, connector positions, and braid coverage areas are verified to ensure the braided wire harness is manufactured according to customer specifications and provides effective mechanical protection.
• Step 2 – Material Specification: Braiding materials and supporting components are selected based on the operating environment, expected abrasion levels, temperature exposure, and mechanical demands. This process helps ensure the finished assembly delivers the required durability, flexibility, and long-term performance for its intended application.
• Step 3 – Braid Selection: The appropriate braid construction and material are selected to achieve the required balance of abrasion resistance, temperature performance, flexibility, and mechanical protection. Material selection is based on customer specifications and application requirements to support reliable operation in demanding environments.
• Step 4 – Multi-Axis Braiding Operations: Braiding is applied using controlled manufacturing processes to achieve uniform coverage and consistent mechanical protection across the entire harness. Consistent braid placement helps protect wire bundles while maintaining flexibility for installation and continuous operation.
• Step 5 – Braiding Configuration:Expandable or tight-weave braiding is applied according to installation, routing, and maintenance requirements. The selected braid configuration provides the appropriate combination of cable protection, flexibility, and service accessibility for the intended application.
• Step 6 – Assembly & Protective Operations: The harness assembly is completed using controlled crimping, soldering, and overmolding processes where specified by the customer. These operations help provide secure electrical connections, effective strain relief, and additional environmental protection for demanding operating conditions.
• Step 7 – Mechanical Durability Testing:Completed assemblies undergo verification for abrasion resistance and mechanical durability based on customer requirements. Testing helps confirm the braided wire harness can withstand vibration, movement, and continuous operation while maintaining reliable protection.
• Step 8 – Quality Inspection:Every braided wire harness undergoes comprehensive inspection to verify workmanship, braid coverage, connector installation, and overall mechanical integrity. Quality inspections help ensure each assembly conforms to customer specifications before shipment.
• Step 9 – Documentation & Manufacturing Traceability:Before shipment, each assembly is supported by complete manufacturing documentation, product identification, labeling, and manufacturing traceability. These procedures help ensure consistent production quality and support defense, aerospace, and other regulated OEM manufacturing programs.

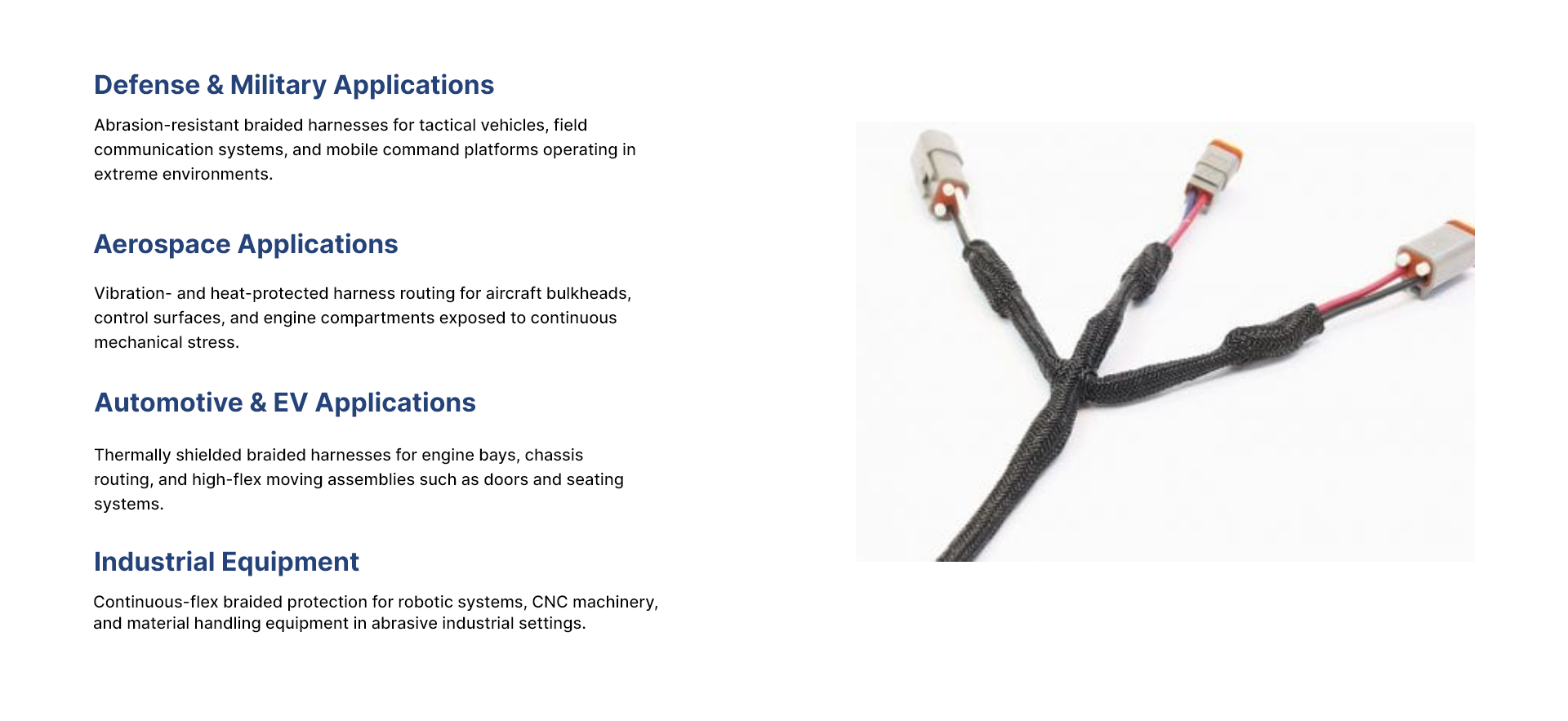

Applications of Our Braided Wire Harnesses

 Braided wire harness assemblies provide durable mechanical protection for wire bundles exposed to abrasion, vibration, continuous movement, and harsh operating conditions. Stantek manufactures custom braided wire harness assemblies for OEMs requiring reliable cable protection and long-term performance across demanding applications.

• Defense & Military Applications: Braided wire harness assemblies are used in tactical vehicles, field communication systems, mobile command platforms, and military support equipment where cables are exposed to vibration, abrasion, and demanding operating environments. The braided protective covering helps reduce mechanical wear while supporting dependable electrical performance in mission-critical applications.

• Aerospace Applications: Custom braided wire harness assemblies support aircraft systems, engine compartments, flight control assemblies, and aerospace ground support equipment where continuous vibration, temperature variation, and mechanical movement are common. Braided protection helps safeguard wire bundles while maintaining routing flexibility and long-term durability.

• Automotive & EV Applications: Braided wire harness assemblies are manufactured for engine compartments, chassis routing, electric vehicle systems, and moving vehicle assemblies such as doors, liftgates, and seating mechanisms. The braided covering provides additional protection against abrasion, vibration, and mechanical wear while supporting reliable electrical connectivity.

• Industrial Equipment: Braided wire harness assemblies are widely used in robotic systems, CNC machinery, automated production equipment, material handling systems, and other industrial machinery where cables experience continuous flexing and movement. The protective braiding helps extend cable life, improve cable organization, and support reliable operation in demanding industrial environments.

Your Partner for Mechanically Protected Wire Harness Manufacturing

When abrasion protection, mechanical resilience, and service matter, Stantek delivers. Our combination of manufacturing expertise, flexible production, and rapid response ensures that you receive high-quality custom braided wire harnesses on time and within budget.Contact us today to discuss your braided wire harness requirements or request a quote for your next defense, aerospace, automotive, or industrial project.
